Custom Silicone Labels & 3D Patches — OEM/ODM Manufacturer
We mould custom silicone labels and 3D patches from 100 pieces, with raised or debossed logos, Pantone-matched colour and a backing that suits how you attach them — sew channel, heat-transfer film or adhesive.
- MOQ 100 pcs
- Sampling 3–7 days
- 0.8–3 mm thick
- Sew-on / heat-transfer / adhesive
| Material | HCR silicone, compression moulded LSR on request |
|---|---|
| Thickness | 0.8–3.0 mm below 0.8 mm only as flat debossed |
| Size range | 10–150 mm, tolerance ±0.1 mm |
| Relief | 3D raised / debossed / two-tone, up to 2 mm relief |
| Backing | Sew channel · heat-transfer film · 3M adhesive |
| Heat-press setting | 110–160 °C, 3–5 kg, 8–15 s |
| MOQ | 100 pcs (trial) / 500 pcs (standard) |
| Sampling | 3–7 days sample fee refundable on order |
| Lead time | 15–20 days after sample approval |
| Colour | Pantone matched, up to 4 colours per label |
| Testing | Third-party (SGS / Intertek / BV) arranged per order |
Values marked on request depend on your drawing. Send it and we will confirm in writing.
Can we make yours?
- Silicone labels 10–150 mm, raised or debossed logos
- Sew-on, heat-transfer or adhesive backing
- Pantone colour matching, up to 4 colours
- Wash-durability testing arranged for apparel use
- 100–50,000 pcs per order
Where we stop
- Hard plastic injection moulding (ABS / PC structural parts)
- Metal machining, stamping or plating
- Factory-level certificates — we arrange third-party testing per order instead
Process and material
HCR compression moulding
Labels are pressed from high-consistency silicone in steel moulds engraved in-house. Compression moulding keeps tooling cost low, which is why a 500-piece label order is viable — LSR injection would need 10× the volume to pay for its tooling.

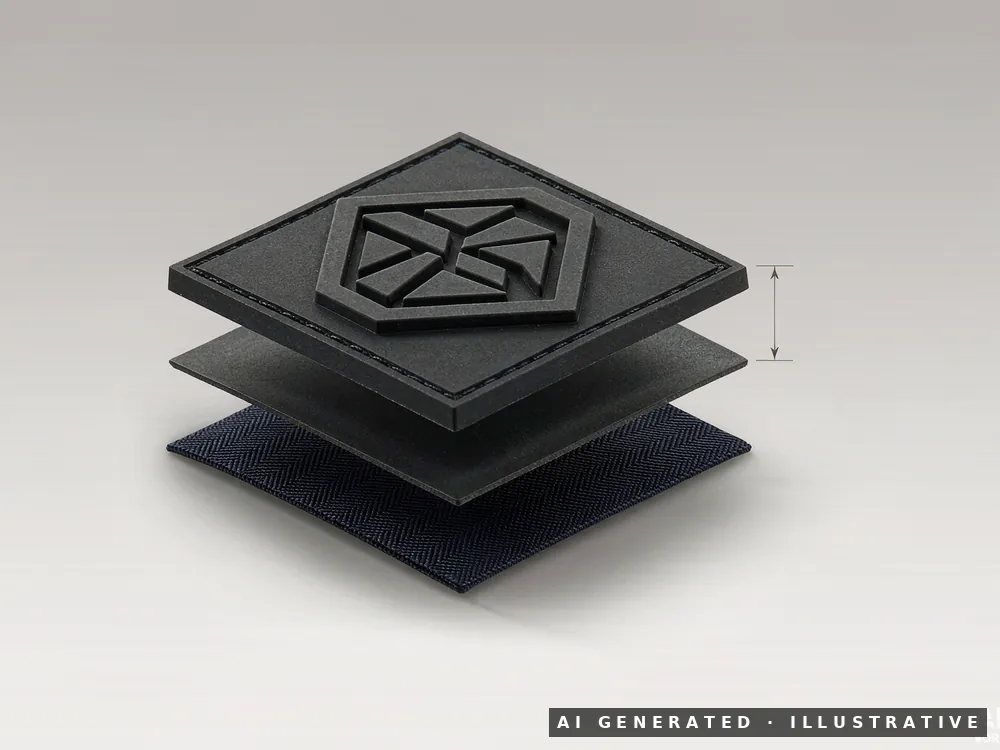

Three ways to attach it
A sew channel is moulded into the border for stitching. Heat-transfer labels carry a hot-melt film activated at 110–160 °C with 3–5 kg for 8–15 s. Adhesive labels use a 3M backing for hard surfaces. Tell us the substrate and we will recommend one.
Post-curing
Labels are post-cured at 200 °C for 2 hours after demoulding. This drives off residual volatiles and odour, which matters for anything worn against skin or packed in a sealed bag for months.
Questions buyers ask about silicone labels & patches
What is your MOQ for custom silicone labels?
100 pcs for a trial run, 500 pcs for standard production. Below 100 pcs we can still quote, but the fixed setup cost dominates the unit price.
Will the label survive industrial washing?
Yes, when the backing matches the substrate. Sew-on is the most durable; heat-transfer holds through 60 °C washes on cotton and polyester blends. We arrange wash-cycle testing for your fabric if you need a number on paper.
Can you match a Pantone colour exactly?
We match to Pantone with a solid-colour silicone chip sent for approval. Slight deviation is normal on soft silicone because the matte surface reflects light differently from a paper swatch — approve a physical chip, not a screen.
What heat-press setting do your transfer labels need?
110–160 °C, 3–5 kg pressure, 8–15 seconds. Exact settings depend on the fabric; we send a recommended profile with the first shipment.
How thick can the raised logo be?
Up to 2 mm above the base surface. Beyond that the silicone starts to undercut during demoulding and the edge quality drops.
The spec table above, the tolerance notes, and the list of what we need from you — as a two-page PDF you can forward to your team.
